Automatic Rising Security Bollards
Automatic bollards are a convenient and automated solution to block and allow access to a street quickly and remotely from anywhere through the internet.

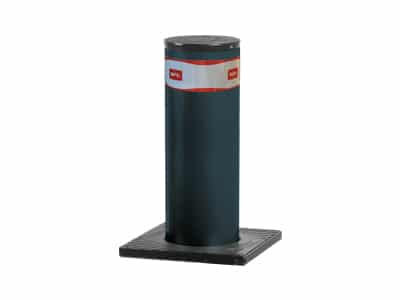

PILLAR B - Hydraulic Bollard
240V hydraulic bollard for very intensive use suitable for high-security places (airports, barracks, street markets and so forth). Stainless steel version available.
Technical Specifications
PILLAR B 275/600
- PILLAR B 275/600
- PILLAR B 275/800
- Shaft height 600mm
- Shaft diameter 275mm
- Rising time 5 sec
- In the SD version, the shaft stays up in case of power failure
PILLAR B 275/800
- Shaft height 800mm
- Shaft diameter 275mm
- Rising time 6.5 sec
- In the SD version, the shaft stays up in case of power failure
Watch the Hydraulic Rising Bollards BFT Pillar B 800 in action in Caloundra - QLD.

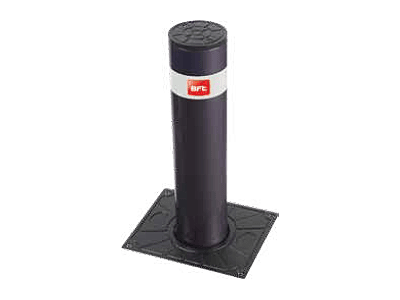

STOPPY-B - Electromechanical Bollards
240V electromechanical bollard for semi-intensive use.
Technical Specifications
STOPPY B 115/500
- Shaft height 500mm
- Shaft diameter 115mm
- Rising time 7 sec
- Version without lights
- Battery backup allows the bollard to stay up in case of power failure
STOPPY MBB 200/700
- Shaft height 700mm
- Shaft diameter 200mm
- Rising time 9 sec
- Version with lights
- Battery backup allows the bollard to stay up in case of power failure

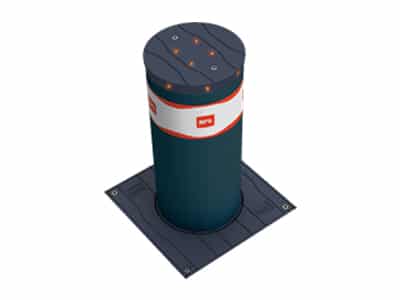

STOPPY-MBB - Electromechanical bollards for intensive use
240V electromechanical bollard for intensive use, suitable for urban areas thanks to the lights situated on the cap and special seals to prevent ingress of debris into the casing
Technical Specifications
STOPPY MMB 219/500
- Shaft height 500mm
- Shaft diameter 219mm
- Rising time 6 sec
- Battery backup allows the bollard to stay up in case of power failure
STOPPY MBB 219/700
- Shaft height 700mm
- Shaft diameter 219mm
- Rising time 9 sec
- Battery backup allows the bollard to stay up in case of power failure
DAMPY B - Manual Gas Bollards
These gas-spring operated rising bollards were designed to offer road access control at competitive prices and with an extremely simple operation.
They are operated using special keys now used throughout Europe in public places.
They are lowered at the press of a foot and are automatically locked into place at the bottom.
Given their size and similar appearance, they can be used in mixed installations to cover wide passages managed by both electric and gas operated bollards.
The models are available with grey painted RAL 7015 rods, lights cap, adhesive strip H:100 mm. 220 mm diameter models are available also with lights and stainless steel stem.

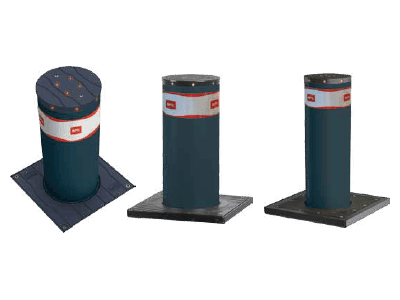

RANCH B-C-D - Fixed bollard
Fixed bollards used for preventing access for long periods. Bolted to the ground, their purpose is to block an access point or a road.
They can integrate the use of automatic or semi-automatic bollards.

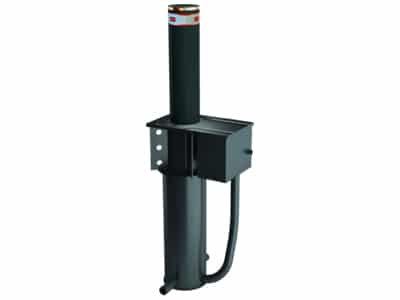

XPASS B 330/1200
240V hydraulic anti-terrorism bollard, tested and certified by an independent body. Stainless steel version available
Technical Specifications
XPASS B 330/1200C L
- Shaft height 1200mm
- Shaft diameter 330mm
- Rising time max 5.3 sec
XPASS B 330/1200C L ECD
- Shaft height 1200mm
- Shaft diameter 330mm
- Rising time max 5.3 sec (1.5 sec in emergency)

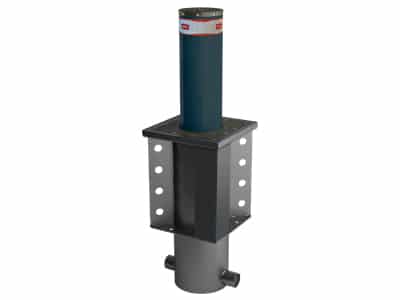

XPASS B 275/800
240V hydraulic anti-terrorism bollard, tested and certified by an independent body. Stainless steel version available.
Technical Specifications
XPASS B 275/800C L
- Shaft height 800mm
- Shaft diameter 275mm
- Rising time 7 sec
- The XPass B 275/800 goes down in case of power failure
XPASS B 330/1200C L ECD
- Shaft height 800mm
- Shaft diameter 275mm
- Rising time max 7 sec
- The XPass B 275/800 stays up in case of power failure

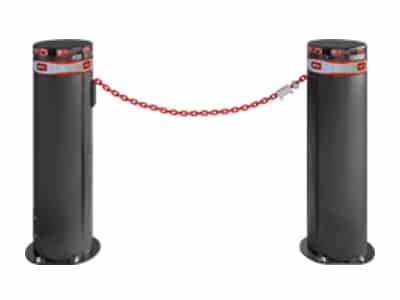

Twin Light
Automatic chain barrier with light caps
Designed for intensive use, suitable for delimiting residential and industrial area entry zones, for the control of access points up to 16m and small car parks.
24V electromechanical chain barrier for intensive use, covering access points up to 16m.
Technical Specifications
- Column with motor & control board
- Height 965mm
- Opening time 10sec
- Electronic limit switch
